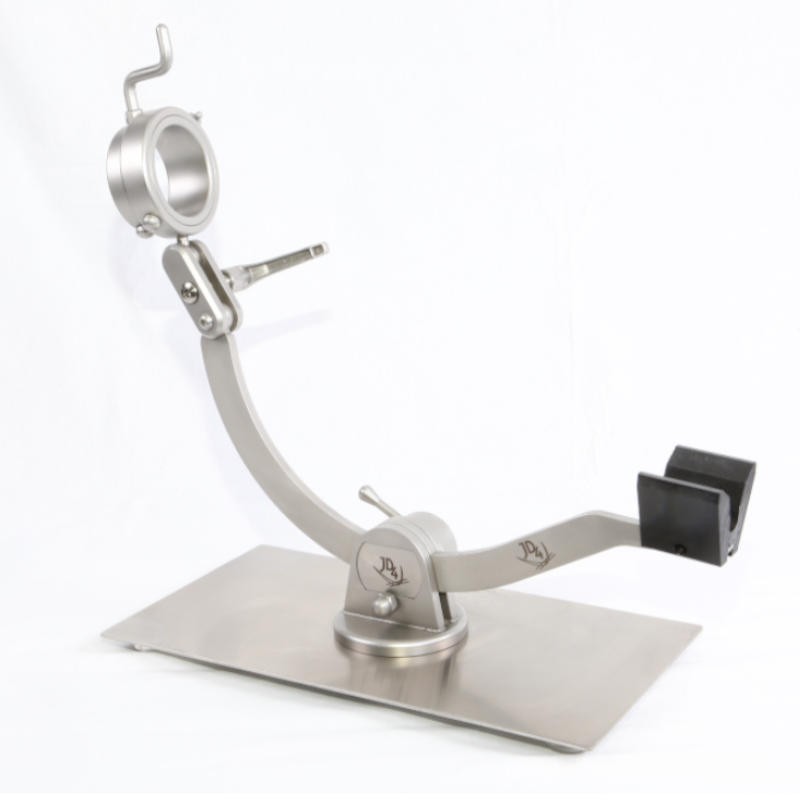

JD4 Atenea professional ham stand

The JD4 ham stand, Atenea model, is a product conceived, designed and manufactured as the ultimate tool for the professional ham carver.

More than three years went into the R&D process, involving renowned professionals from the ham and catering sectors, who contributed countless details and nuances to create a product perfect for the professional.

The semi-artisanal manufacture, in which the parts are made one by one, allows for exceptional quality control and guarantees that the stand leaving the factory meets all the demanding parameters set out in its development.

The materials are of high quality and chosen to deliver maximum performance with almost no maintenance.

Manufacture, thanks to this semi-artisanal element, is entirely versatile, allowing the stands to be customised for any project and in any element.

The manufacturing team has proven experience in precision parts.

It adapts to any size of ham or shoulder to be carved, since it allows the angle and position to be fully adjusted, making carving more efficient, simpler and more ergonomic. The ham can be positioned horizontally or vertically thanks to the three-dimensional rotation of its clamping head, and its cutting angle can be adjusted by tilting its arm.

The stand's arm is removable, allowing one ham to be quickly and easily swapped for another in a matter of seconds and so speeding up the service of the finished product. On the Zeus model, it also allows the arm to be reinstalled the other way round, in the correct orientation so that the clamping levers can be operated by left-handed users.

As it dismantles completely, thorough cleaning of the stand is made easy in very little time after use.

The weight, firmness, clamping and precision make this stand an essential tool for very high-quality work.

The stand's arm is removable, allowing one ham to be quickly and easily swapped for another in a matter of seconds and so speeding up the service of the finished product. It also allows the arm to be reinstalled the other way round, in the correct orientation so that the clamping levers can be operated by left-handed users.

Firmness, clamping and precision would be the perfect words to define our ham stands. The brake materials are highly resistant and durable, the result of many trials and having been put through the toughest working tests; this brake mechanism prevents the arm from falling under the weight of the ham when the lever is opened, working at all times and with the option to adjust the brake's firmness quickly and easily.

The ham professionals who have tried our ham stands put them through extreme carving conditions. All of them reached the same conclusion, giving our ham stands an excellent rating and being very satisfied with their stability and their many positioning options, rating the operation of the brake very highly, both when clamping and when releasing it to position the arm.

Features:

Materials:

The main material used is 304 stainless steel for all the metal parts and food-grade polyethylene for the cradle at the lower part of the arm. The stainless steel is given a matt finish, having established that for a public presentation it is much cleaner, as no grease marks or visible fingerprints are left by a touch or by holding it with the hand.

For the various bases that can be fitted there are several options: stainless steel, wood, granite, Silestone and any other requested by the end user.

Rotating clamping head:

Made from stainless steel, it consists internally of two sharp spikes at the bottom and a clamping knob at the top, so that, with three-point fixing, movement of the piece during carving is prevented. It has a screw to lock the internal rotation, which allows the ham to be turned over without removing it from the stand. Larger-diameter heads are available for hams without the trotter, along with bespoke heads and clamps.

Ball joint:

This element, exclusive to JD4, allows the height and distance of the arm to be adjusted, using the distance-locking lever, to fit the stand to the size of the ham or shoulder to be carved.

Arm:

A key element of the stand. Made from stainless steel. It is removable with a slight movement of the braking lever, allowing one ham to be quickly and easily swapped for another in a matter of seconds and so speeding up the service of the finished product. It also allows the arm to be reinstalled the other way round, in the correct orientation so that the clamping levers can be operated by left-handed users.

The rear cradle supporting the arm is made from food-grade polyethylene, a hard-wearing material that does not damage the knife's edge when struck during carving. As it does not pierce the tip or the far end of the ham with a spike, it does not let in air that could affect the organoleptic properties and quality of the meat in that area. This part can be easily turned and swapped using a screw should it wear.

Arm rotation:

The professional ham stand features an innovative rotation system that lets the ham be moved through a 360º angle on a fixed axis over the base, easily locked for firm, perfect carving.

Angle adjustment:

The lower levers allow the stand's angle to be adjusted quickly to suit the carver's working preferences. They also allow the stand to be dismantled to make quick product changes.

Stand base:

As this element is fundamental to the stability of the stand, great emphasis has been placed on the weight, dimensions and anchoring of the upper part. Solidity is a factor that reaches this fundamental part of the stand, so its design and features have been carefully considered from the outset in order to combine materials without losing any of its qualities. Another option is to do without the stand base and anchor the arm base to a counter or carving table. The key is that lower anchoring, which consists of two through steel bolts. The stand's lower platform is supplied, by default, in stainless steel or wood, although it can be made with different finishes, so it can be adapted to suit each business's décor or the user's taste.

Cleaning:

As an important factor to bear in mind, the design and manufacture use components with no crevices and no materials that could rust or hide dirt. Its ease of cleaning guarantees maximum hygiene with regular use of the stand. It dismantles completely and is made from stainless steel with a matt finish. The bases are made from smooth surfaces of food-industry-safe materials.

Maintenance is extremely simple since, being steel, it can be washed with soap and water and can go in the dishwasher. The advantage of matt steel is that grease marks are not visible during use, so at the end of service the appearance of cleanliness is impeccable.

The parts that may wear, such as the head threads, the arm cradle and so on, can be replaced quickly and at very low cost. These are the parts used most often, on a daily basis. In any case, the working life of these elements is enormous, withstanding daily work for years, as they are high-performance parts.

The removable parts are dishwasher safe, making daily cleaning easier and guaranteeing complete hygiene in daily service.

An important feature of the JD4 professional ham stand is the quick removal of the arm, so that in an instant, with a single gesture, it dismantles and can be put away.

Durability:

Owing to its construction, it is a very sturdy stand, designed to last a long time in perfect condition without showing any sign of wear. The materials are chosen so that the strength, solidity and appearance are permanent.

It also carries the official two-year guarantee, during which any unlikely defect would be resolved immediately.

Assembled ham stand dimensions:

• Height: 43.5 cm
• Width: 43 cm
• Depth: 23 cm
• Measurement with the clamping head: 58 cm.
• Arm arc measurement: 46.5 cm.
• Weight: 8.5 kg.

To pair with this ham stand, our website offers the Medusa stand, which lets you arrange the arms as a display, with capacity for 3 arms and their respective hams.
