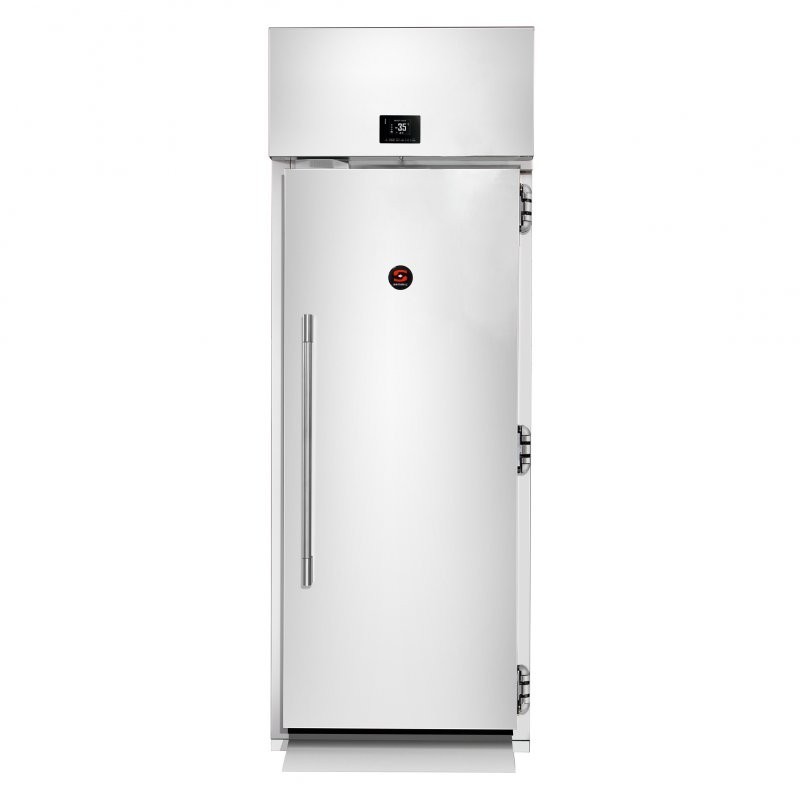

Sammic AT-20 blast chiller and freezer

AT-20 commercial blast chiller and freezer, supplied with GN 1/1 and GN 2/1 trolleys and an integrated motor.

Three-phase supply for this Sammic blast chiller.

Performance of the Sammic AT-20 blast chiller:

• Chilling: 90 kg / 90 min
• Freezing: 65 kg / 240 min

A wide range of applications for this AT-20 blast chiller: frozen pizzas, fresh pasta, patisserie, gastronomy, ice cream, desserts, bakery and more.

Rapid blast chilling helps to maintain food quality, preserve nutrients and improve the efficiency of kitchen processes.

Rapid blast chilling is the best natural way to extend the life of food.

Power, versatility and reliability are the most notable features of this Sammic AT-20 blast chiller.

Rapid chilling to +3 °C prevents bacteria from multiplying and stops food drying out through evaporation, keeping the food's original qualities for five to seven days.

Blast freezing to -18 °C at the core in under four hours prevents large ice crystals from forming, essential so that, once defrosted, the food keeps its original texture and quality.

Automatic holding at the programmed maintenance temperature at the end of each function.

This Sammic blast chiller is made from stainless steel.

This AT-20 blast chiller has hygienic cathodic protection.

Thanks to its stainless steel, this AT-20 blast chiller is easy to clean.

The Sammic blast chiller is insulated with water-expanded polyurethane foam that is free of CFCs and HCFCs.

For rapid cooling, this Sammic AT-20 blast chiller is built with high-power compressors.

The airflow in this Sammic blast chiller is indirect.

This AT-20 blast chiller has an integrated motor.

It is built with freon refrigerant, so this Sammic blast chiller has a low GWP.

The evaporators of this AT-20 blast chiller are cataphoresis-treated to reduce odours and mould, improving performance and durability.

• Control panel functions of the Sammic AT-20 blast chiller:
• HARD function for rapid chilling, SOFT for blast freezing.
• Cycles by temperature, time or core probe.
• Data storage at the end of the cycle.
• Manual air defrost.
• Option to customise and store cycles and settings.
• HACCP functions for alarm logging.
• Bluetooth connectivity for full process control via the free EVConnect app.

Special cycles of the AT-20 blast chiller:

• Pre-cooling.
• Raw fish sanitising.
• Ice cream hardening.
• Other optional cycles: defrosting, interior sterilisation, core-probe cooling.

Technical specifications of the Sammic AT-20 blast chiller:

• GN 1/1 trolley: 1
• GN 2/1 trolley: 1
• 600x400 trolley: 1
• 600x800 trolley: 1
• Supply: three-phase
• Chilling capacity: 90 °C to 3 °C / 90 min / 90 kg
• Freezing capacity: 90 °C to -18 °C / 240 min / 65 kg
• Power consumption: 3,900 W
• Net weight: 450 kg

External dimensions:

• Width: 890 mm
• Depth: 1,397 mm
• Height: 2,450 mm

Equipment included with this Sammic AT-20 blast chiller:

• Core probe.
• Bluetooth connectivity.

Optional equipment

• Wi-Fi connectivity for process control from anywhere.
• Ozone sterilisation.
• Stainless steel tray trolleys designed specifically for blast chillers.

*Optional equipment available on request.
