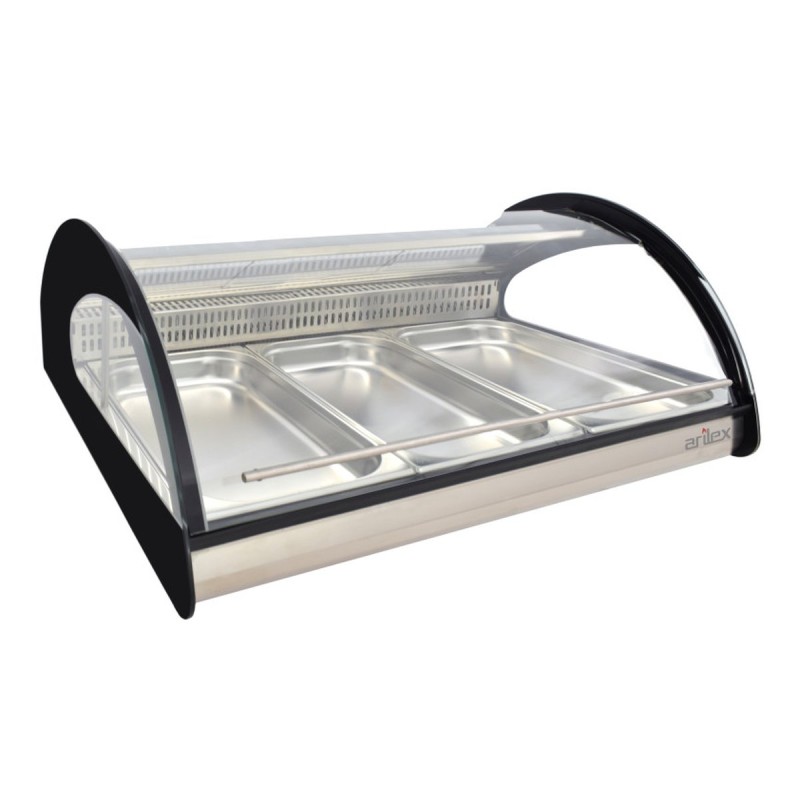

Refrigerated fish display cabinet 3 GN1/1 PANORAMIC 3GN Arilex

Refrigerated display cabinet 3 GN1/1 trays for fish and seafood PANORAMIC 3GN Arilex

The Arilex PANORAMIC 3GN is a large-format refrigerated display specially designed to display fish, seafood and sushi, though it is also suitable for fresh food in general such as meats, desserts and salads. Made in Spain from corrosion-resistant AISI-316 stainless steel (suitable for salt-laden environments), it combines high capacity, a panoramic view and a dual service zone.

With its 3 GN1/1 trays and sliding front glass, it works both as a traditional display (service from behind the counter) and as a self-service display. The static, cold-plate evaporator guarantees the cold across the whole display zone without drying out the product, which is critical when displaying delicate fish and seafood.

Main features

• Made in Spain with high-quality materials and CE certification.
• Specially designed for fish, seafood and sushi, also suitable for meats, desserts and salads.
• High capacity and panoramic view.
• Dual service zone: works as a classic behind-the-counter display or as self-service thanks to the sliding front glass.
• Toughened safety glass.
• Made from corrosion-resistant AISI-316 stainless steel suitable for salt-laden environments: fish and seafood can be displayed directly in the well on a bed of crushed ice.
• Large-diameter well drain to make cleaning easier (essential in fishmongers).
• LED lighting.
• Digital electronic control of temperature and defrost.
• Removable sliding rear doors for easier cleaning.
• Hermetic compressor with a fan-cooled condenser.
• Static, cold-plate evaporator that guarantees the cold in the display zone without drying out the product.
• Eco-friendly R-152a refrigerant, kind to the ozone layer.

Technical specification

Recommended use

The PANORAMIC 3GN is the ideal display for fishmongers, fish and seafood restaurants, sushi bars, seafood-platter counters, seafood tabernas, food markets, restaurants with a fresh-fish menu, gourmet beach bars and professional production kitchens. The AISI-316 stainless steel withstands continuous contact with salt, ice and fish juices without corroding; the cold-plate evaporator keeps the cold without dehydrating the products; and the dual service zone helps optimise the flow between kitchen and customer on high-volume counters.

Advantages of AISI-316 over AISI-304

• Greater resistance to chloride corrosion (salt, fish, seafood, salted ice).
• Far longer lifespan in marine environments or with continuous exposure to salt-laden moisture.
• Meets the strictest food-safety requirements for fishmongers.
• Allows the product to be displayed directly in the well (bed of ice) without damaging the equipment.

Maintenance and cleaning

Daily cleaning is done with the drain open and a hose, thanks to the large-diameter well drain. The GN1/1 trays are removed for separate cleaning. Clean the sliding front glass with a non-abrasive glass cleaner. The evaporators and compressor require an annual technical inspection by an authorised installer. The condenser filter should be cleaned every month to maintain refrigeration performance.

Which business is it ideal for?

Perfect for fishmongers and seafood shops, restaurants with a fresh-fish menu, sushi bars, seafood tabernas and gourmet beach bars. It also suits restaurants with delicate product on display (seafood, ceviche, tartare), and premium catering that needs to keep fish or seafood on display during long services.

PANORAMIC 2GN or PANORAMIC 3GN?

The PANORAMIC 2GN (2 GN1/1 trays) is the compact option for medium-volume businesses. The PANORAMIC 3GN (3 GN1/1 trays) is the extended option for higher-volume businesses or those displaying variety. Both share the same construction and features.

Arilex quality and manufacture

Arilex designs and manufactures all its refrigerated displays in Spain. The PANORAMIC series represents the premium segment of the range, with AISI-316 steel and a cold-plate evaporator, aimed at the fishmonger and seafood sector where the equipment faces the most demanding conditions. Each unit passes factory quality control and is supplied with CE certification and a 1-year guarantee on parts.

Important notices

Guarantee. Commercial product with a 1-year guarantee on parts only, per the manufacturer's terms. To handle any claim, please see our contact details at the foot of the page.

Important. Before switching on for the first time, leave the unit standing upright in its final position for 24 hours before plugging it in. See our contact details at the foot of the page for more information.
